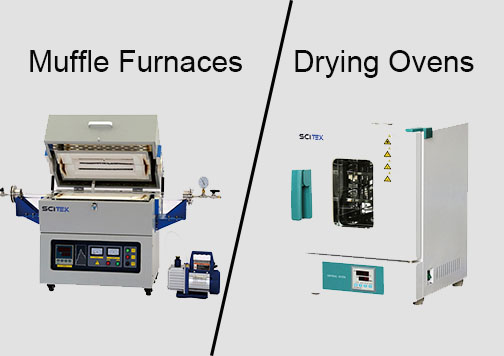

Differences Between Muffle Furnaces and Drying Ovens?

The main differences between muffle furnaces and drying ovens are the maximum temperatures they can reach, the materials they are made of and the way they transfer heat.

Muffle furnaces and drying ovens : What is?

A muffle furnace is a heated furnace that isolates the material being processed from combustion and is typically used for high temperature laboratory applications.

Muffle furnaces are made of refractory material that separates the sample from the heating element. This ensures that the muffle can operate safely and reliably at high temperatures.

Drying ovens are used to heat and dry a sample in a closed chamber to evaporate moisture or solvents.

The principle of operation is that the electric heating element heats up, the moisture on the surface of the object evaporates, and a circulating airflow removes the humid air. The airflow achieves a uniform temperature inside the oven by distributing hot air.

The main difference between a muffle furnace and a drying oven:

Design Purpose:

Drying ovens are designed to use forced air convection to circulate warm air throughout the oven to remove moisture from materials. They can be used to dry, sterilise and cure a wide range of materials.

Muffle furnaces are designed to provide a safe, controlled and efficient heating environment for high temperature heat treatment experiments and processes.

Heating Temperatures:

Muffle furnaces can heat up to 1700°C while drying ovens can heat up to 400°C or less. Muffle furnaces can be operated at higher temperatures in a controlled, sealed environment than drying ovens that only remove moisture at low temperatures.

Gases:

Muffle ovens typically use inert or reducing gases, while drying ovens use air as the circulating gas stream.

Heat Distribution:

The heat-resistant material of the muffle furnace wraps around the sample and distributes the heat evenly. Drying ovens typically have uneven hot and cold spots.

Insulation:

The muffle furnace is constructed with insulation and is tightly insulated. It minimises heat loss and maintains a high internal temperature. Drying ovens need to be better insulated.

Heating Source:

Muffle furnaces use electric heating elements. Drying ovens typically use gas or convection heating.

Applications:

Drying ovens are suitable for low temperature applications.

Drying ovens are suitable for removing moisture from samples at low temperatures; for example, they are often used to dry foodstuffs, pharmaceuticals, and electronic components.

Muffle furnaces are typically used for high temperature material processing applications such as sintering, ceramic firing, analysing, heat treating, calcining and annealing. They can also be used for general purposes, such as ashing furnaces in the coal analysis industry.

Chamber Size:

Drying furnaces typically have larger chambers. Muffle furnaces have smaller but more controllable chambers.

Cost:

Industrial muffle furnaces are more expensive than drying furnaces.

Conclusion:

Generally speaking, muffle furnaces are more expensive than ovens due to their high temperature capabilities and precision. However, both require regular maintenance to ensure efficient operation and a long service life. The choice between a muffle and an oven depends on your specific needs. Consider the temperature requirements, accuracy requirements, and the nature of the material or substance to be heated. By understanding the differences and similarities between these two types of equipment, you can make an informed decision that best suits your requirements.
