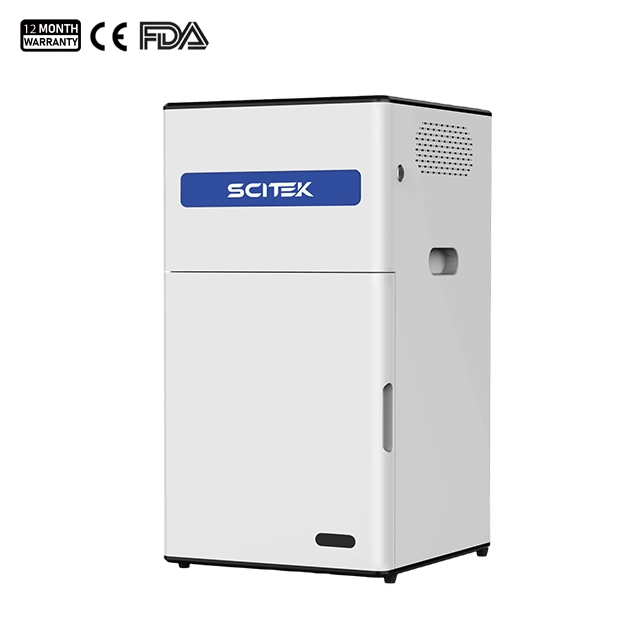

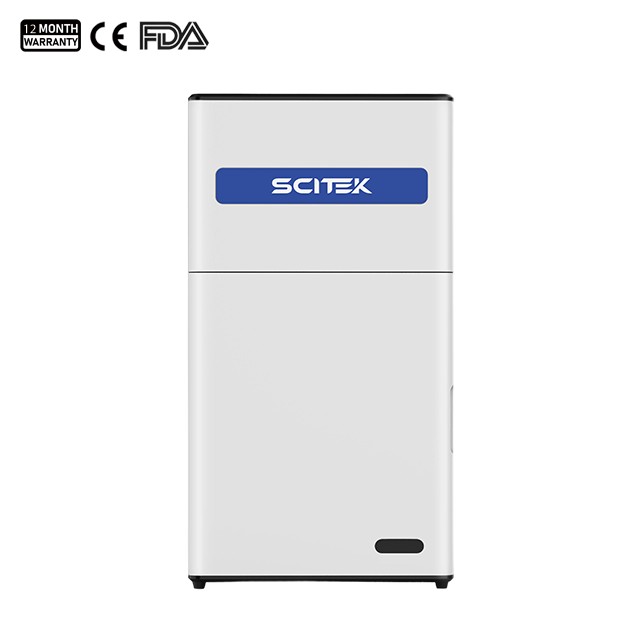

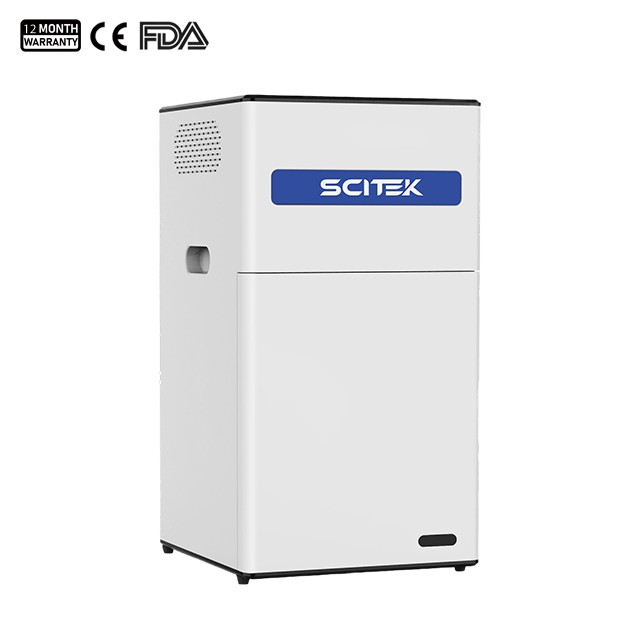

Automatic Chemiluminescence Gel Imaging System, ACG-X6

Model : ACG-X6

Resolution : 9 Megapixels
Cooling Temperature : -65 ℃
Quantum Efficiency : High QE: >95%
Exposure Time : 1 ms-60 min
Pixel Density : 16-bit (0-65535 colors)
ACG-X6 is ideal for high-precision imaging in molecular biology, biotechnology, and life sciences research.
Availability:
Quantity:
Inquiry Add to Inquiry List

Application:


The Automatic Chemiluminescence Gel Imaging System ACG-X6 is ideal for high-precision

imaging in molecular biology, biotechnology, and life sciences research, providing automated

 chemiluminescence analysis, protein quantification, and gene expression studies.


Advantage:


1. Scientific-grade deep-cooled ultra-sensitive camera with  large-aperture  lens.

2. Fully automated control of lens and light source, eliminating manual adjustments.

3. One-click capture with automatic overlay of marker and chemiluminescence images.

4.  Millisecond-level precise auto-exposure,removing the need for repeated exposure

 time estimation.


Specification:


Model ACG-X6
Resolution9 Megapixels
Cooling Temperature-65 ℃
Quantum EfficiencyHigh QE: >95%
Pixel Size3.75×3.75 µm
Pixel Binning1×12×24×4, 8×8
Exposure Time1ms-60 min
Pixel Density16-bit (0-65535 colors)
Dynamic Range≥4.8 Orders of Magnitude
Motorized LensF=0.95, 25mm Autofocus Lens
UV TransmissionNone
White Light ReflectionLED Reflection (Cool Light)
UV ReflectionNone
Filter WheelNone
Filter LensesNone
Imaging Area12×12 cm
Auto Shutdown1~60 min
External Size (W×D×H) 380×405×695 mm
Shipping Size (W×D×H) 500×525×825 mm
N.W/G.W.31/34 kg


Previous:
Next:
Get Quotation/Become Distributor

Related Products

Horizontal Electrophoresis Tank ET-H04
Horizontal Electrophoresis Tank ET-H04
Horizontal Electrophoresis Tank ET-H03I
Horizontal Electrophoresis Tank ET-H03I
Horizontal Electrophoresis Tank ET-H03
Horizontal Electrophoresis Tank ET-H03
Electrophoresis Power Supply, High Amperage
Electrophoresis Power Supply, High Amperage
Electrophoresis Power Supply, EPS-600C
Electrophoresis Power Supply, EPS-600C

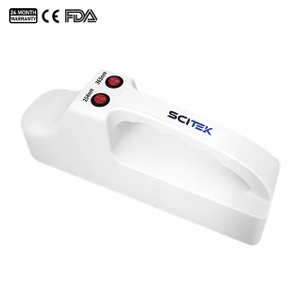

Ultraviolet Analyzer 365nm, 254nm Wavelength
